Description

Overview

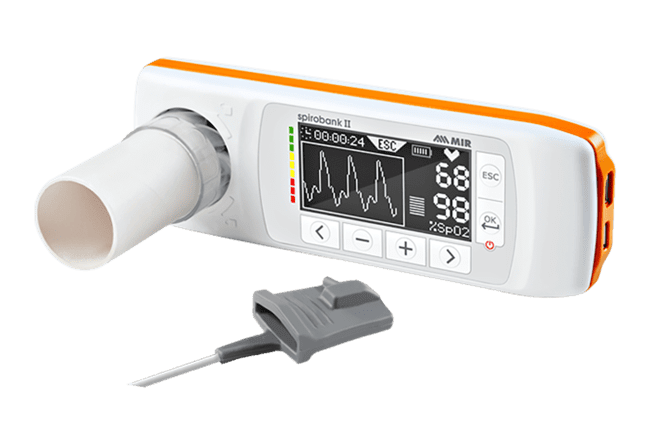

The MIR Spirobank 2 Smart is a handheld, versatile and complete spirometer with Oximetry option. It provides you with all the support you need before, during and after the spirometry test with the Spirobank 2 Smart BLE app. It’s also easily connected to your tablet or PC via Bluetooth or USB.

Features

–        Improved patient compliance with the Spirobank 2 Incentive Animations that can be directly viewed on the MIR Spiro App.

–        Easy data transfer and sharing with the real-time Spirometry and oximetry module.

–        PC and/or tablet connectivity via USB and WinspiroPRO software (compatible with Windows XP, Vista, 7, 8, and 10)

–        The FlowMIR disposable turbine with a cardboard mouthpiece is an efficient and inexpensive alternative to antibacterial filters

Included

–        WinspiroPRO CD

–        Rechargeable batteries

–        USB cable

–        Nose clip

–        Carrying case

–        User’s manual CD

–        FlowMIR Disposable Turbines (Box of 10)

–        MIR Spiro App for iPad

Specifications

Display	2.5″ (160 x 80 pixels).
Power Supply	3.7 V, 110 mA lithium battery, USB rechargeable.
Keypad	6-key membrane keyboard.
Data Transmission	USB and Bluetooth Smart.
Memory	10,000 tests.
Device Dimensions	6″ x 2″ x 1″ (160 mm x 55 mm x 25 mm).
Device Weight	0.32 lb (145 g) with battery.
Flow Measurement	± 16 L/s.
Volume Accuracy	± 3% or 50 mL.
Flow Accuracy	± 5% or 200 mL/s.
Temperature Sensor	Semiconductor (0 – 45 °C), automatic BTPS conversion.
Main Spirometry Parameters	Using iPad software – FVC, FEV1, FEV1/FVC%, PEF, FEF 25 – 75, FET, Lung Age, VC, IVC.
SpO2 Measurement (Optional)	0 – 99%.
SpO2 Accuracy (Optional)	± 2%; between 70 – 99% SpO2.
Pulse Rate Measurement (Optional)	18 – 300 BPM.
Pulse Rate Accuracy (Optional)	± 2 BPM or 2%, whichever is greater.
Configurable Alarms ON-OFF (Optional)	SpO2 and pulse rate Min-Max, finger/sensor inserted, battery out of energy.
