Description

Overview

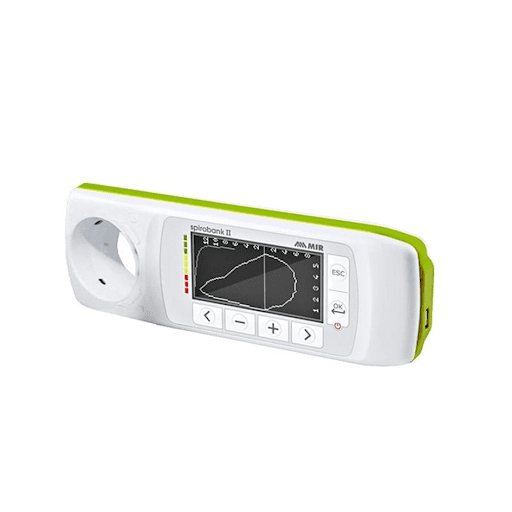

The MIR’s Spirobank II Basic is a rapid pocket spirometer that was specifically designed for general practitioners and family doctors as it makes spirometry testing possible anywhere. You can enjoy real-time testing on your personal laptop via a USB port. The Spirobank II Basic also features a long-lasting rechargeable battery and a backlit screen for easier result interpretation.

Features

–        Compatible with the most important spirometric parameters including: FVC, VC, IVC, IC, ERV, FEV1, FEV1%, PEF, FEF 25-75, FET, EVOL, TEST POST BD

–        Features traffic light health indicator for immediate test interpretation

–        Capacity of on-board memory storage: up to 10,000 tests

–        Built-in rechargeable long-life battery (40 hours continuous operation)

–        Supplied with Winspiro PRO software (PC system requirements: XP, Seven, Vista, 8, 10), USB cable, 1 disposable turbine in a carrying bag.

–        Online PC connection with icon interface

–        Real time Flow/Volume and Volume/time curves

–        Bronchial challenge with FEV1 dose-response

–        Pediatric incentive animations

–        Integration with EPR systems

–        Lung Age estimation feature

Components

–        Spirobank II Basic Spirometer

–        1 x Winspiro PRO PC Software

–        1 x Noseclip

–        1 x USB charging/data cable

–        1 x User manual (on CD)

–        1 x Carry pouch

Specifications

Power supply	3.7 V, 110 mA lithium battery, USB rechargeable
Keypad	6-key membrane keyboard
Display	LCD monochrome 160×80 pixel
Flow range	+ 16 l/s
Flow accuracy	± 5% or 200 ml/s whichever is greater
Max volume	10 l
Volume accuracy	± 3% or 50 ml whichever is greater
Data transmission	USB 2.0
Weight	140 g including battery
Size	55 x 160 x 25 mm
