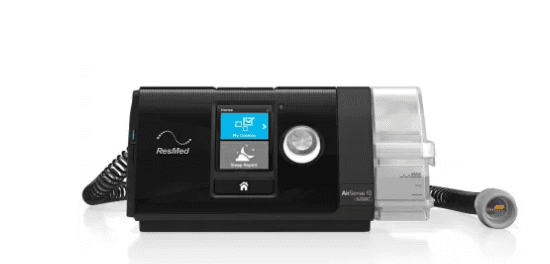

ResMed is reinventing its vision of treating sleep disorders with a fully integrated data transmission system in its new AirSense 10 AutoSet device.

With the Resmed Airview, a secure cloud-based system for online patient monitoring, your respiratory therapists can easily access your data, troubleshoot remotely, and even adjust your settings so you get the most out of your therapy from the comfort of your own home – no need to come for an appointment! It also has a ton of other innovative features that make using it a breeze…

Who is the AirSense 10 AutoSet for?

The Airsense 10 AutoSet is perfect for:

•         Light Sleepers
•         Allergy Sufferers
•         If You Are New to CPAP
•         Those Who Are Experienced with CPAP Therapy

Technical characteristics

•         CPAP
•         AutoSet
•         AutoSet algorithm with AutoSet Soft mode
•         Auto ramp with sleep onset detection.
•         Climate Control Auto technology (optional)
•         SmartStart
•         Built-in wireless connectivity

---

Features:

---

AutoRamp function

With its streamlined design and a new range of accessories, the AirSense 10 AutoSet device provides patients with obstructive sleep apnea positive pressure ventilation therapy with an AutoRamp feature.

The AutoRamp function with drowsiness detection increases the pressure to the prescribed level as soon as you fall asleep. This feature is designed to make the treatment as comfortable and effective as possible right from the start.

AutoSet response

The Advanced AutoSet Algorithm Response allows for additional customization for even more convenience. It allows a gentler increase in pressure while maintaining the same sensitivity for detecting inspiratory flow limitations, while the Quiet Easy-Breathe™ motor provides natural, comfortable breathing flow.

Built-in Heated Humidifier

The new HumidAir™ humidifier features Climate Control technology, allowing constant humidification throughout the night.

Easier to navigate, simpler to adopt

•         The AirSense 10 AutoSet device features a large, easy-to-use color display with an intuitive menu that patients can quickly navigate.
•         A built-in ambient light sensor adjusts screen brightness based on room lighting. Therefore, if you have to get up during the night, the screen backlight will not disturb your partner.
•         A simple and intuitive user interface provides morning feedback on your therapy and you can easily change comfort settings.
•         The Easy-Breathe™ motor is designed to be very quiet so you and your partner can enjoy a peaceful night’s sleep.
• The SmartStart™ feature allows you to start your treatment as soon as you breathe into your mask.

Components

•         Auto-Adjusting CPAP Machine
•         Built-In HumidAir Heated Humidifier
•         Standard Humidifier Chamber
•         SlimLine Tubing: 15mm Diameter
•         1 SD Card (Installed)
•         1 SD Card Envelope
•         Power Supply and Cord
•         Travel Bag
•         1 Standard Filter (Installed)
•         Filter Cover
•         Patient Manual
•         C2C Addendum
•         Hose Elbow

---

Specifications:

---

Sound Level	26.6 dBA
Machine Dimensions	10.04 in L x 4.57 in W x 5.91 in H
Machine Weight	2.75 lbs (1248g)
Machine Warranty	2 Years
Voltage Requirements
AC Input Range – 90W Power Supply	100 – 240V, 50 – 60Hz, 1.0 – 1.5A, Class II
DC Output – 90 W Power Supply	24V — 3.75A
Typical Power Consumption	53W (57VA)
Peak Power Consumption	104W (108VA)
Power Cord Length	12 feet
Default Machine Settings	4-20cm H2O
Humidification Available	Yes
Humidification Type	Built-In
Heated Hose Option	Yes
Exhalation Relief	Yes
Ramp Mode	Yes
Max Altitude	8500
DC Capable	Yes
Battery Option	Yes
Compliance Data	Yes
Advanced Data	Yes
Auto Altitude Adjustment	Yes
Auto Start	Yes
Auto Stop	Yes
FAA Compliant	Yes
