Description

Overview

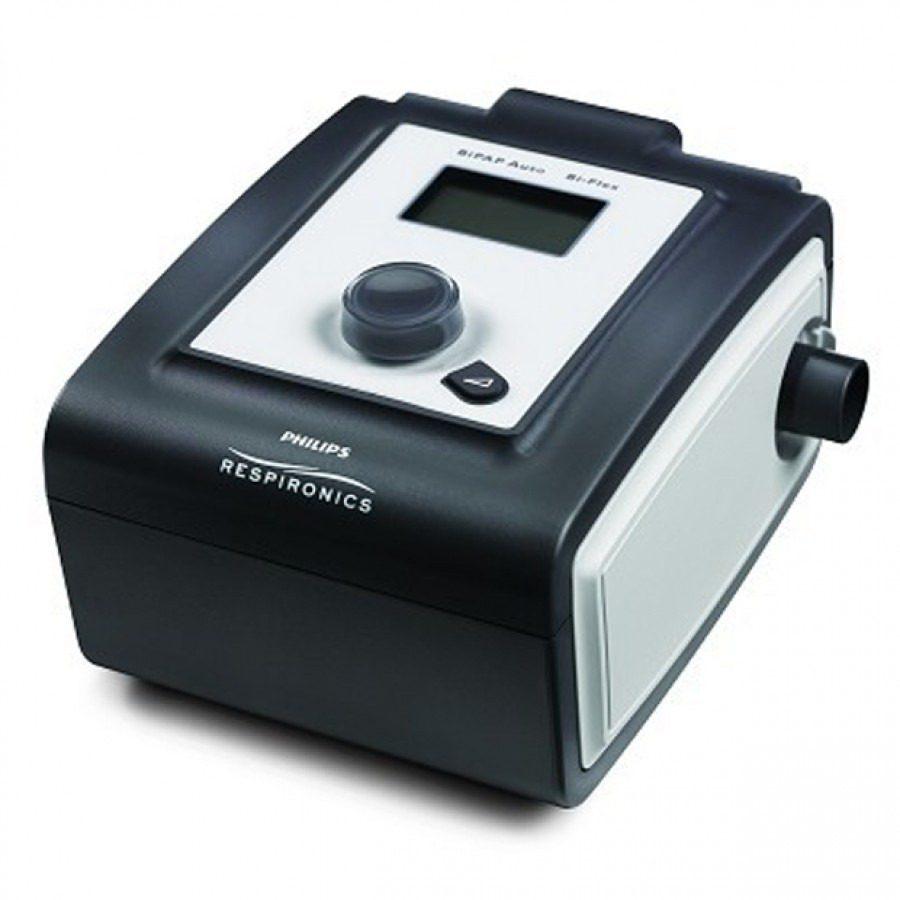

The Philips Respironics BiPAP auto Bi-Flex system is designed to provide positive airway pressure therapy for the treatment of obstructive sleep apnea. The BiPAP Auto Bi-Flex was intended for patients who find it hard to adapt to CPAP therapy as it emulates natural breathing for maximum comfort.

Features

Real time access

The Real time access feature allows you and your respiratory therapist to easily assess the success of your treatment and adjust it if ever needed.

Event detection

The BiPAP Auto Bi-Flex with its clinically proven algorithms continually monitors and adjusts your changing therapy needs.

Humidity control

When integrated with System One heated humidifier, your device will adapt the therapy humidity to the ambient temperature and your flow to provide you with optimum compliance and comfort.

Bi-Flex technology

The Bi-Flex technology enhances your comfort by delivering pressure relief making your therapy as similar to a natural experience as possible.

Specifications

Pressure range	4 to 25 cm H₂O
Flex pressure relief	0 to 3 cm H₂O
Ramp time	0 to 45 min (5-min increments) minute(s)
Warranty	Two years (US only)
Starting ramp pressure	4 to min EPAP pressure (patient adjustable) and 4 to min EPAP pressure (auto mode) cm H₂O
Diameter	18 cm L x 14 cm W x 10 cm H (7″ L x 5.5″ W x 4″ H)
On-board data storage capacity (minimum)	up to 6 months
Weight without humidifier	1.36 (3) kg (lbs)
Filters	Foam and optional ultra-fine
Electrical requirements	100-240 VAC and 50/60 Hz
Device set-up	LCD/control wheel/push button
Data storage capacity Display (minimum)	Compliance VIC, 1-, 7- and 30-day averages
Data storage capacity SD Card (minimum)	>1 year(s)
Compliance meter	Breathing detection
Altitude compensation	Automatic
Humidification	Integrates with System One 60 Series heated humidifier and System One 60 Series Heated Tube humidifier
Miscellaneous	Lighted LEDs
