Description

---

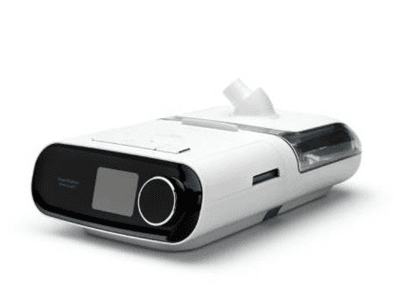

DreamStation BiPAP AutoSV is designed to deliver optimal ventilation with minimal intervention for people whose sleep or waking needs are complicated by obstructive sleep apnea. So you can sleep comfortably and restfully.

Who is the DreamStation BiPAP AutoSV for?

The DreamStation BiPAP AutoSV machine is intended for use in the treatment of the following conditions:

• Obstructive Sleep Apnea
• Central Sleep Apnea
• Complex Sleep Apnea
• Periodic Breathing
• Cheyne-Stokes Respiration

---

Features:

---

DreamStation BiPAP AutoSV machine with heated humidifier

The new DreamStation BiPAP Auto SV with a heated humidifier is designed to provide optimal ventilation with minimal intervention. Specially designed to be the best choice for the management of patients with complicated sleep-disordered breathing. It combines a number of technologies to recognize and respond to changing pressure needs and is clinically proven to treat obstructive, central, and complex apneas and hypopneas, as well as periodic breathing, such as Cheyne-Stokes respiration.

at night, with the humidifier and heated hose having heat settings from 0 to 5, with 0 being off and 5 being the highest heat. Adaptive mode is also available which monitors ambient humidity and automatically adjusts heat levels overnight to provide optimal humidity.

Servo-Ventilation Algorithm

The algorithm is designed to adjust pressure support accordingly to stabilize breathing and provide the minimum level of mechanical intervention.

Auto back-up Rate

BiPAP AutoSV Auto-Rescue Rate is designed to provide support during central apneas while encouraging spontaneous breathing.

Auto EPAP

 The auto EPAP algorithm is designed to keep the upper airway open, the algorithm responds to obstructive events and proactively seeks the lowest possible therapeutic pressure.

Intuitive Menu System

Graphics-based menu inspired by smartphone navigation for easy operation.

Ambient Light Sensor

Automatically adjusts screen brightness for day or night viewing.

Integrated Bluetooth® and DreamMapper connectivity

DreamMapper is a free mobile and web app with motivational alerts, troubleshooting tips, and educational content. The DreamMapper app is designed to help you take an active role in adjusting to your sleep apnea treatment. Built-in Bluetooth sends important sleep information to DreamMapper, keeping you in touch with your therapy.

SD Card and Compliance Codes

Easily share sleep data with the care team.

A two-stage air filtration system

The ultra-fine filter provides additional filtration of very fine particles.

Heated tube (Optional)

The DreamStation heated tube can be added to further increase therapeutic comfort by helping to maintain heat and humidity. The heated hose maintains the temperature of the air supplied to you.

Benefits

• Reduce the frequency of obstructive and central events
• Reduce AHI
• Remove Cheyne-Stokes respiration
• Improve oxygenation
• Improve the quality of life

---

Specifications:

---

Pressure range	4 à 30 cmH20/hPa
Ramp Time	0 à 45 mn
Heated humidification	fixed, adaptive
Data storage capacity (minimum)	SD card 6 months,  On-board 3 months
Altitude compensation	Automatic
Filters	Reusable pollen;  disposable ultra-fine
Device controls	LCD, control dial/push button
Warranty	2 years (US)
Dimensions	15.7 x 19.3 x 8.4 cm (without humidifier);  29.7 x 19.3 x 8.4 cm (with humidifier)
Weight	1.33 kg/2.94 lbs (without humidifier);  1.98 kg/4.37 lbs (w/ humidifier); Including power supply
Voltage	100 – 240 VAC
Frequency	50/60 Hz
Amperage	2.0-1.0 A
