Description

Overview

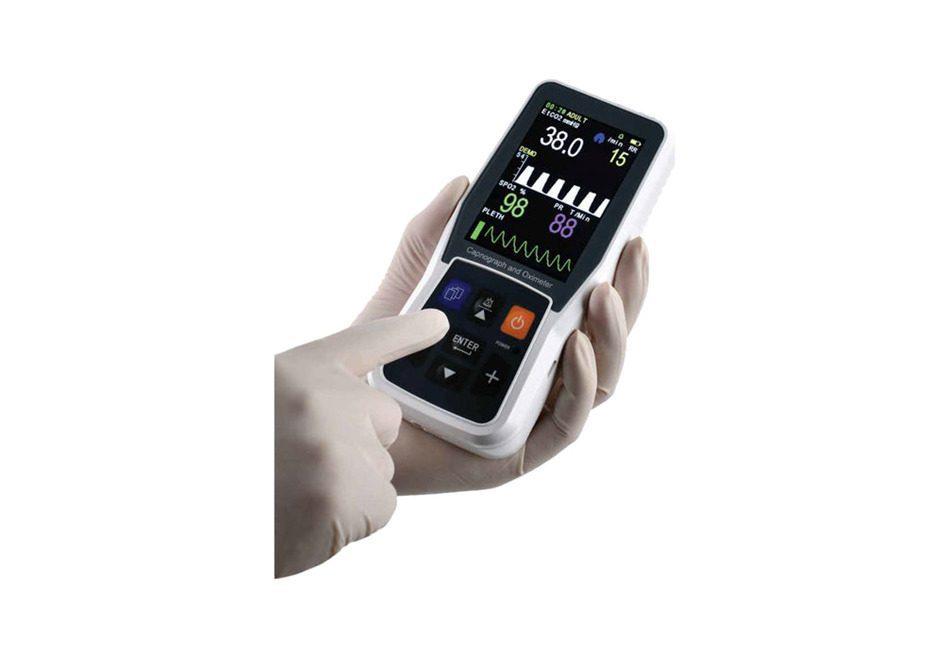

The Creative Handheld Capnograph and Oximeter is a compact and portable device that was intelligently designed to measure the levels of carbon dioxide and oxygen saturation through a single device.

Features

–        User friendly interface

–        Robust and lightweight design, perfect for paramedics and tough environmental use

–        Full colour 8.9cm TFT display

–        Monitors EtCO2 / FiCO2, RR, SpO2 & PR

–        Switchable readout in kPa / mmHg / %

–        Adjustable pump flow rate allows the use of microflow sample lines (Use T4M Water Trap / Adapter with Microflow Sample Lines)

–        Adjustable audio and visual alarms

–        24-hour graphic trend

–        Built in rechargeable Li-Ion batteries with up to 10 hours working time

–        USB connectivity for data transfer

–        Now allows input of patient ID for reporting

Included

–        Device

–        1 Main Set

–        6 Water Filter

–        1 Sampling line

–        1 Airway adapter

–        1 USB cable

–        1 AC/DC adapter (US standard)

–        1 Nasal CO2 Sampling Cannula

–        1 SpO2 probe

–        1 Silicon cover

–        1 canvas bag

–        1 support base

–        1 PC-900B Manual

Specifications

Device Dimension	72mm(W) x 155mm(H) x40mm(D)
Concentration of EtCO2 Range	0.0-19.7% (V/V), 0-150mmHg, or 0-20kPa, accuracy deviation˘±2mmHg when EtCO2 concentration in 0
Total System response time	< 1second
Respiration rate range	3 ~150 times/min, deviation the bigger of ±1% or ±1bpm
Pulse range	30 times/min~250times/min, Deviation when 30times/min~40times/min, ±2times/min (absolute value); when 41times/min~250times/min, ±5% (relative value)
