Description

---

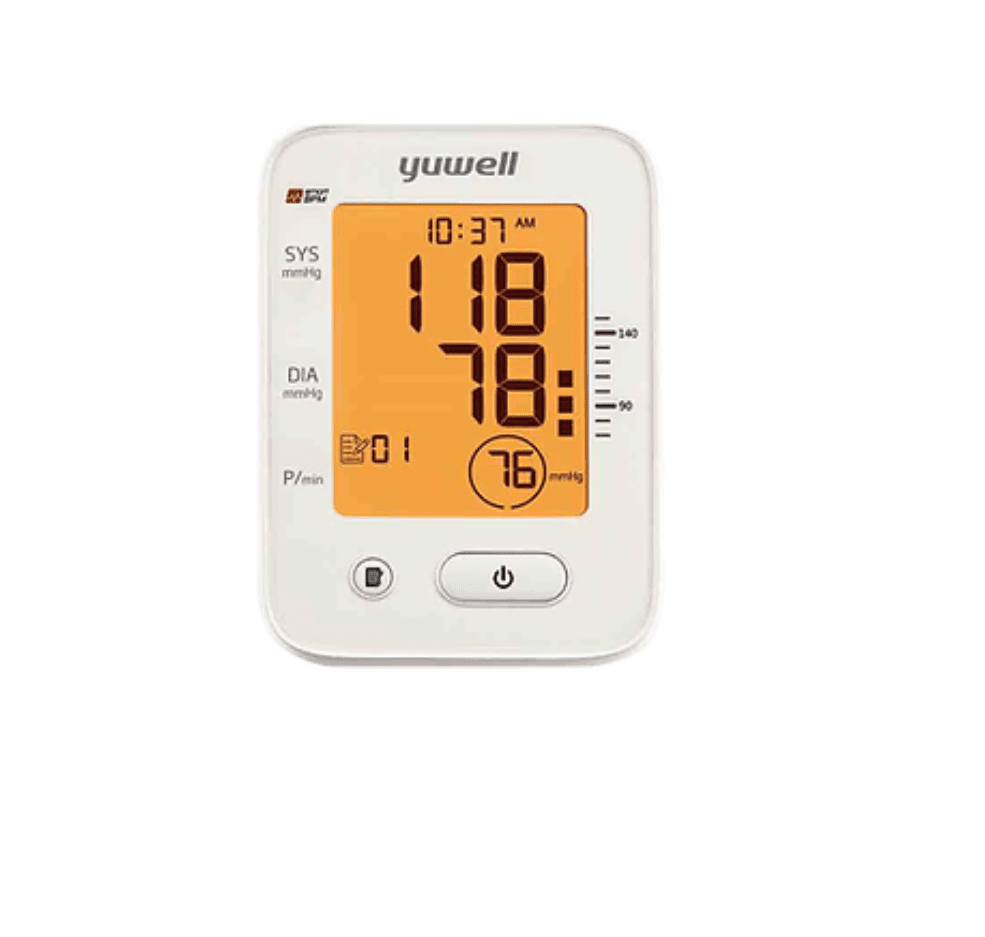

The YE660F is a very high-quality digital blood pressure monitor with a comfortable and easy-to-wear armband. With a backlit large LCD screen and full voice guidance, it’s the perfect BPM for home use.

---

Features:

---

• Large backlit display.
• 90 readings memory.
• Irregular heartbeat detection.
• Cuff wrapping detection.
• Voice broadcast function.
• Blood pressure range indication.
• The unit comes with one adult arm cuff.

Components:

• Electric Blood Pressure Monitor
• Armband
• 4 X AA alkaline dry batterie
• Instruction manual (with warranty card)
• Power adapter

---

Specifications:

---

Model	YE660F
Operation Mode Classification	Continuous operation
Display Mode	LCD digital display
Power supply	4 AA batteries or 6V/600mA DC power
Battery life	300times (AAx4)
Arm cuff	Fits arm circumference (22-45cm)
Dimension	152(L)x130(W)x75(H)mm
Pressure Transducer	Semiconductor pressure sensor
Measuring method	Arm/Oscillation mensuration
Pressure measuring range	0-300mmHg (0-40.0kPa)
Precision
Pressure	within 3mmHg (0.4kPa)
Pulse rate	within 5% of reading value
